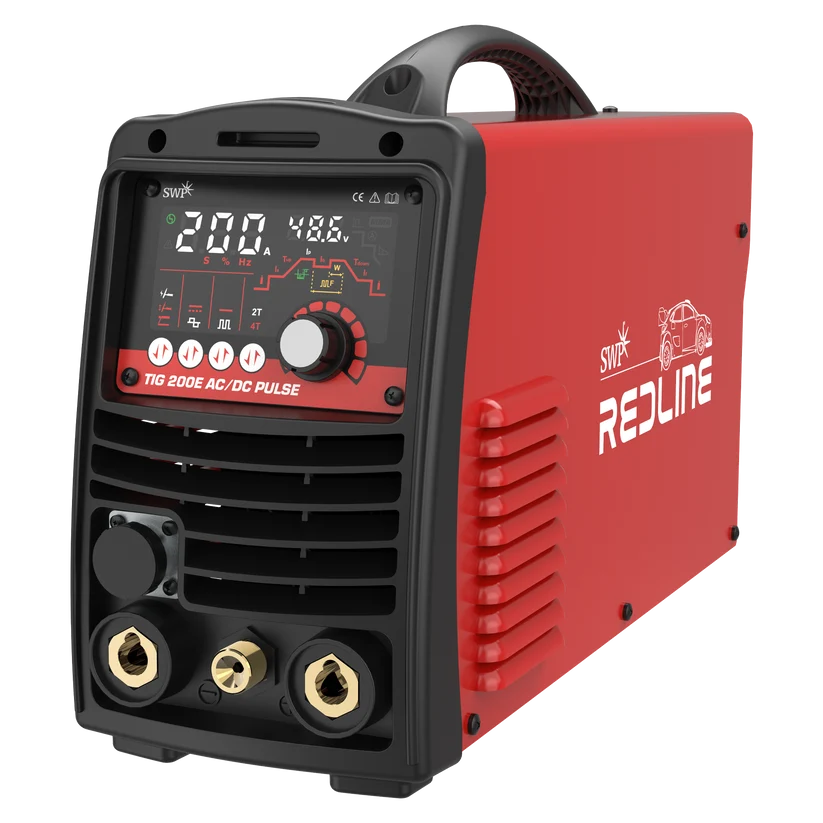

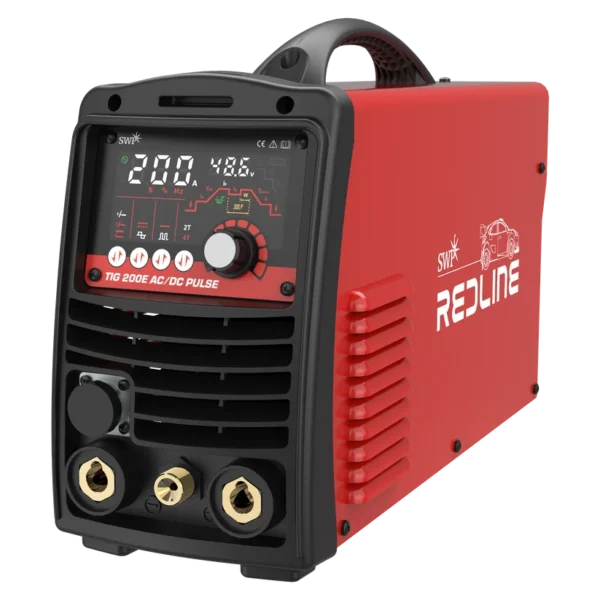

Redline TIG 200E AC/DC Pulse TIG Welding Machine

  • 200A AC/DC TIG and MMA inverter welder
  • AC TIG for aluminium welding
  • DC TIG for steel and stainless steel
  • Pulse TIG for improved heat control
  • High Frequency (HF) arc ignition
  • 2T / 4T trigger operation
  • Digital display with MCU inverter control
  • Hot Start and Arc Force for MMA welding

£609.00

Including 20% VAT

- +

Redline TIG 200E AC/DC Pulse TIG Welder is a professional AC/DC inverter welding machine designed for fabricators who demand precision, versatility and complete control. Delivering up to 200A output with AC and DC TIG welding, Pulse TIG, HF arc starting and MMA functionality, it provides everything required for welding aluminium, stainless steel, mild steel and other ferrous materials from a single compact power source.

Brand

Redline

Specifications

  • Input Voltage: 230V, 1 Phase, 50/60Hz
  • Welding Processes: AC TIG, DC TIG and MMA (Arc)
  • AC TIG Output Current: 10–200A
  • DC TIG Output Current: 10–170A
  • MMA Output Current: 10–170A
  • AC TIG Duty Cycle: 35% @ 200A
  • DC TIG Duty Cycle: 40% @ 170A
  • MMA Duty Cycle: 40% @ 170A
  • HF Arc Start: Yes
  • AC/DC Welding: Yes
  • Pulse TIG: Yes
  • 2T / 4T Trigger: Yes
  • Digital Display: Yes
  • MCU Control: Yes
  • Hot Start: Yes (MMA)
  • Arc Force: Yes (MMA)
  • Protection Class: IP21S
  • Insulation Class: Class F
  • Dimensions: 450 × 160 × 280mm
  • Weight: 7.8kg

Redline TIG 200E AC/DC Pulse TIG Welder is a professional AC/DC inverter welding machine designed for fabricators who demand precision, versatility and complete control. Delivering up to 200A output with AC and DC TIG welding, Pulse TIG, HF arc starting and MMA functionality, it provides everything required for welding aluminium, stainless steel, mild steel and other ferrous materials from a single compact power source.

Brand

Redline

Specifications

  • Input Voltage: 230V, 1 Phase, 50/60Hz
  • Welding Processes: AC TIG, DC TIG and MMA (Arc)
  • AC TIG Output Current: 10–200A
  • DC TIG Output Current: 10–170A
  • MMA Output Current: 10–170A
  • AC TIG Duty Cycle: 35% @ 200A
  • DC TIG Duty Cycle: 40% @ 170A
  • MMA Duty Cycle: 40% @ 170A
  • HF Arc Start: Yes
  • AC/DC Welding: Yes
  • Pulse TIG: Yes
  • 2T / 4T Trigger: Yes
  • Digital Display: Yes
  • MCU Control: Yes
  • Hot Start: Yes (MMA)
  • Arc Force: Yes (MMA)
  • Protection Class: IP21S
  • Insulation Class: Class F
  • Dimensions: 450 × 160 × 280mm
  • Weight: 7.8kg
