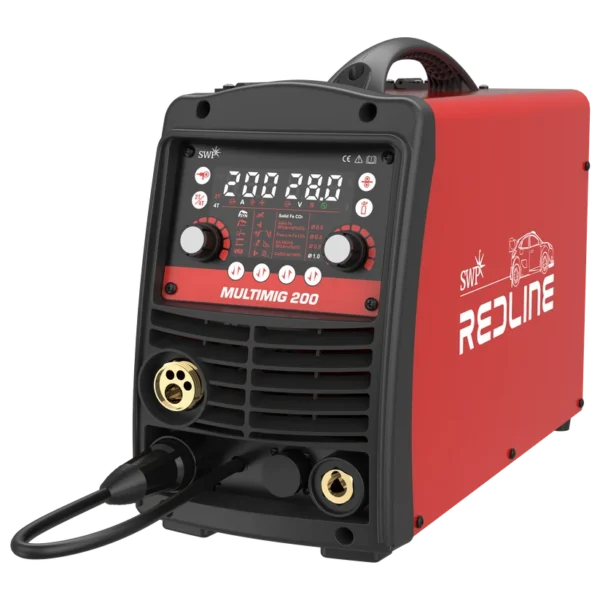

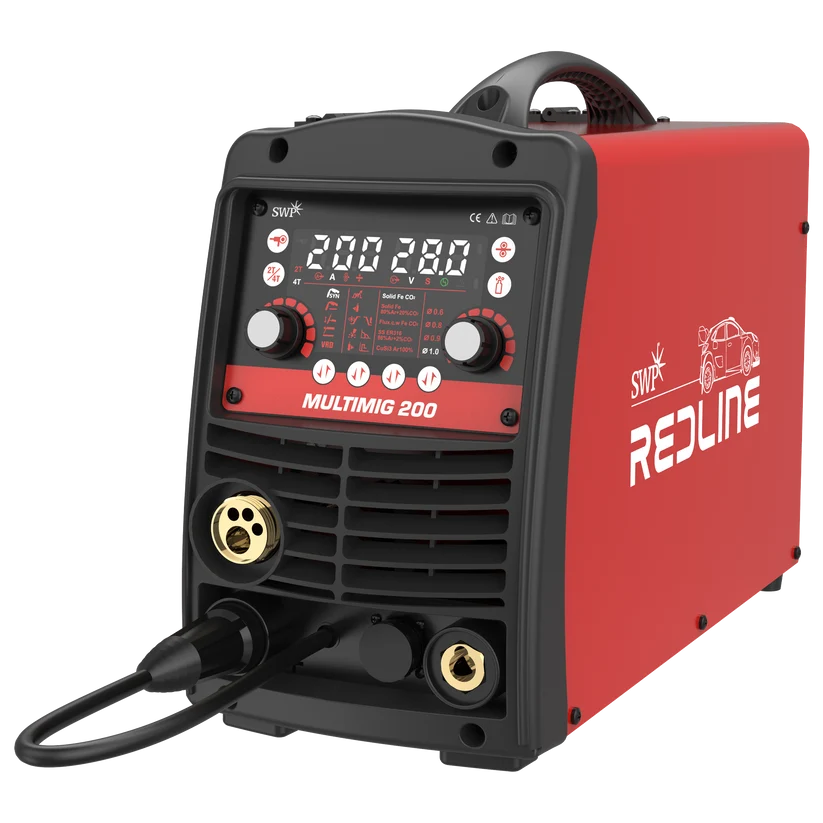

Redline MULTIMIG 200 MIG Welding Machine

  • 200A multi-process inverter welder
  • MIG, MMA and Lift TIG welding functions
  • Synergic MIG programmes
  • 2T / 4T trigger operation
  • Hot Start and Arc Force for MMA welding
  • Spool gun compatible
  • Digital display with simple parameter adjustment
  • Lightweight portable design at just 10.3kg

£435.00

Including 20% VAT

- +

Redline MULTIMIG 200 Multi-Process Welder is a versatile 230V inverter welding machine that combines MIG, MMA and Lift TIG welding in one compact unit. Designed for fabrication workshops, maintenance engineers and professional users who need maximum flexibility, it delivers up to 200A output together with synergic MIG programmes, making setup faster while producing consistent, high-quality welds across a wide range of applications.

Brand

Redline

Specifications

  • Input Voltage: 230V, 1 Phase, 50/60Hz
  • Welding Processes: MIG, MMA (Arc) and Lift TIG
  • MIG Output Current: 40–200A
  • Lift TIG Output Current: 20–160A
  • MMA Output Current: 20–160A
  • Duty Cycle: 20% @ 200A
  • Wire Reel Capacity: Up to 200mm (5kg)
  • Synergic MIG: Yes
  • Lift TIG: Yes
  • MMA Function: Yes
  • 2T / 4T Trigger: Yes
  • Spool Gun Compatible: Yes
  • Hot Start: Yes
  • Arc Force: Yes
  • Protection Class: IP21S
  • Insulation Class: Class F
  • Dimensions: 460 × 190 × 330mm
  • Weight: 10.3kg

Redline MULTIMIG 200 Multi-Process Welder is a versatile 230V inverter welding machine that combines MIG, MMA and Lift TIG welding in one compact unit. Designed for fabrication workshops, maintenance engineers and professional users who need maximum flexibility, it delivers up to 200A output together with synergic MIG programmes, making setup faster while producing consistent, high-quality welds across a wide range of applications.

Brand

Redline

Specifications

  • Input Voltage: 230V, 1 Phase, 50/60Hz
  • Welding Processes: MIG, MMA (Arc) and Lift TIG
  • MIG Output Current: 40–200A
  • Lift TIG Output Current: 20–160A
  • MMA Output Current: 20–160A
  • Duty Cycle: 20% @ 200A
  • Wire Reel Capacity: Up to 200mm (5kg)
  • Synergic MIG: Yes
  • Lift TIG: Yes
  • MMA Function: Yes
  • 2T / 4T Trigger: Yes
  • Spool Gun Compatible: Yes
  • Hot Start: Yes
  • Arc Force: Yes
  • Protection Class: IP21S
  • Insulation Class: Class F
  • Dimensions: 460 × 190 × 330mm
  • Weight: 10.3kg
