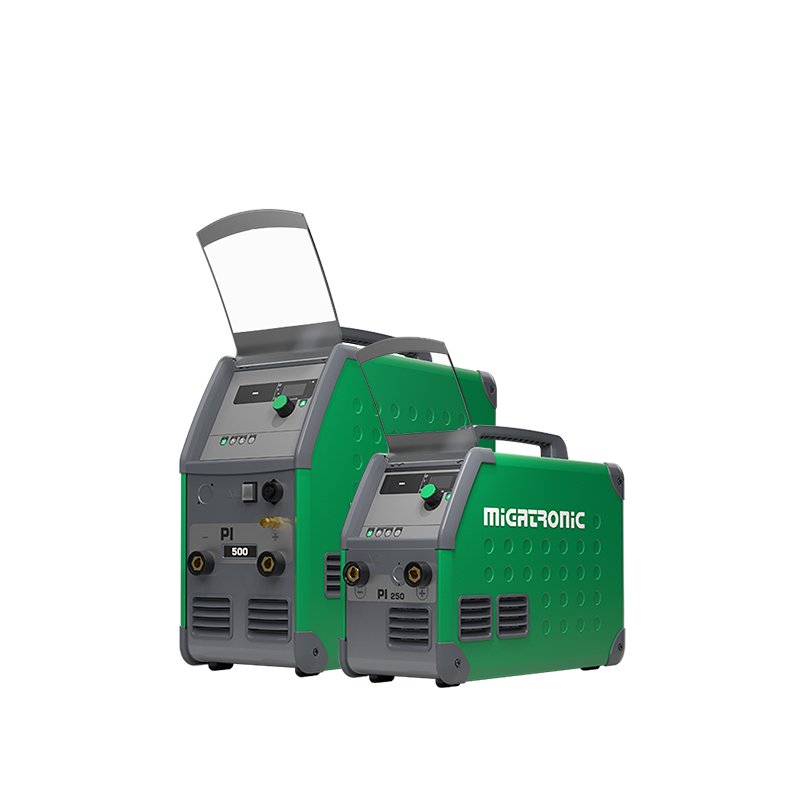

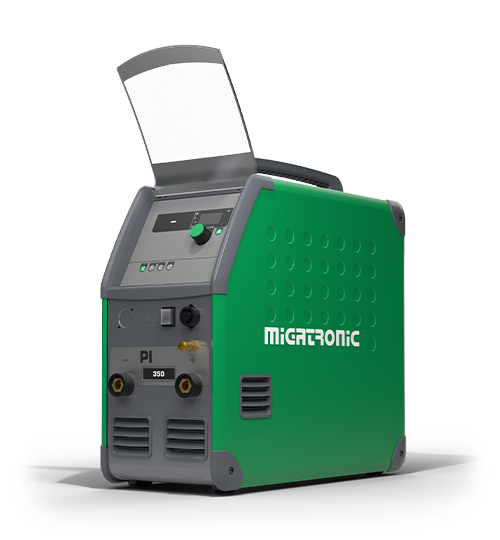

Migatronic Pi MMA Welder – 250 To 500A – 400v

Let loose Precision And Power: The Migatronic Pi MMA Welder

Experience the pinnacle of MMA welding with the Migatronic Pi MMA Welder. This industrial-grade machine, designed for professional and advanced welders, delivers exceptional performance, user-friendly controls, and unmatched versatility.

Master any project with confidence: Whether you’re tackling heavy-duty fabrication, on-site repairs, or demanding pipe welding, the Pi MMA excels in even the most challenging environments.

Amperage:	250 A, 350 A, 350 A Cellulose, 500 A

Brand

Migatronic

https://www.youtube.com/watch?v=ou2V8zQPulc&t=4s

Features

High-Performance Inverter Technology: Experience smooth arc starts, precise control, and a stable welding arc thanks to Migatronic’s innovative inverter technology.
Advanced Arc Control Features: Features like Hotstart, Arc Power, and automatic electrode preheating ensure effortless weld initiation, minimise spatter, and optimise arc characteristics for various electrode types.
Heavy-Duty Design: Built to withstand the rigors of professional use, the Pi MMA boasts a robust construction and a high duty cycle, allowing for extended welding sessions without overheating.
Wide Current Range: Handle a broad spectrum of welding tasks with the Pi MMA’s wide current range. From delicate sheet metal work to thick weld joints, this machine offers the power and precision you need.
Cellulose Electrode Compatibility: The Pi MMA tackles even the most demanding jobs with its compatibility with cellulose electrodes, ideal for thick-section welding and pipe applications.
Simple TIG Capability: Perform basic TIG welding tasks with the Pi MMA’s lift-arc TIG ignition, offering additional functionality for your welding repertoire.
Choice of Control Panels: Select from various control panel options to suit your specific needs and welding preferences.

Applications

Heavy-duty fabrication
On-site repair and maintenance
Pipe welding (including cellulose electrodes)
Structural steel welding
General purpose MMA welding
Industrial repairs
Construction projects

Specifications

250 E	350 E	350 E CELL	500 E
Current range	5-250 A	5-350 A	5-300 A	5-500 A
Mains voltage +/- 15 %	3 × 400 V	3 × 400 V	3 × 400 V	3 × 400 V
Fuse type C	10 A	25 A	16 A	32 A
Mains current, effective	7.1 A	18.0 A	15.4 A	22.5 A
Mains current, max.	13 A	23.1 A	19.1 A	33.7 A
Open circuit voltage	95 V	95 V	95 V	95 V
Efficiency	87%	79%	79%	90%
Application class	S/CE	S/CE	S/CE	S/CE
Protection class	IP 23	IP 23	IP 23	IP 23
Standard	EN/IEC60974-1 EN/IEC60974-10 (Class A)	EN/IEC60974-1 EN/IEC60974-10 (Class A)	EN/IEC60974-1 EN/IEC60974-10 (Class A)	EN/IEC60974-1 EN/IEC60974-10 (Class A)
Dimensions (H × W × L)	360 mm × 220 mm × 520 mm	550 mm × 250 mm × 640 mm	550 mm × 250 mm × 640 mm	980 mm × 545 mm × 1090 mm
Weight	20/23 kg	31 kg	31 kg	33 kg
