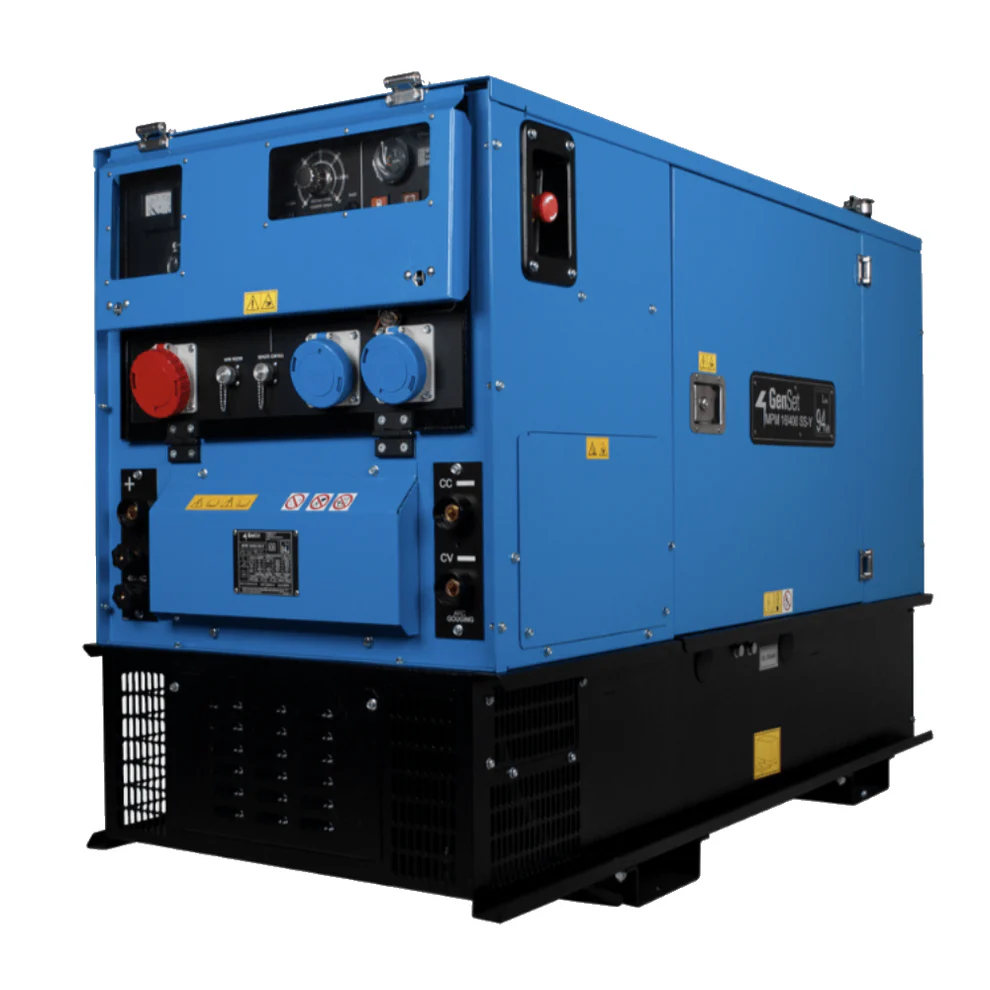

GenSet MPM 16/400 SS-Y Static Super Silent Diesel Welder Generator

Compact and resistant engine driven welder suitable for frequent handling. Equipped with Yanmar 1500 RPM engine, it’s fitted for remote operation.

Asyncronous alternator for better welding current quality, clean and distorsion free wave form.

£15,821.50

Including 20% VAT

Available on backorder

Category: Welder Generators

Features

Tig Lift Arc welding
Mig welding
Low-High amps switch for a more accurate arc control 30A – 200A / 30A – 400A
Arc Force Control with basic/cellulosic changeover switch
Carbon Arc Gouging (CAG) socket
Remote control socket
Weld voltmeter and ampmeter
Auto engine protection shutdown system with warning lights for:
– battery charger failure
– low fuel level
– low oil pressure
– high water temperature
– engine overspeed
12V built-in battery
Fuel level gauge
Hourmeter
Voltmeter
Earth Leakage Circuit Breaker
Power output protection
1 x 32 A 400 V three-phase EEC socket
1 x 32 A 230 V single-phase EEC sockets
1 x 32 A 110 V single-phase EEC sockets
Engine oil drain pipe
Central lifting eye
Fork-lift pockets
1500 RPM
Perkins engine

Brand

Genset

Product Specs

Noise level 93 LWA (68dB at 7m)
DC welding Current regulation: Electronic
Duty Cycle @ 40%: 420A – 28V
Duty Cycle @ 60%: 400A – 36V
Duty Cycle @ 100%: 350A – 34V
Stepless control (CC mode): 30A – 400A
Stepless control (CC mode): 10V – 40V
Open Circuit Voltage: 70V
Max welding rod: 8mm
AC generator – 50Hz Type: GenSet asynchronous, self-excited and self-protected
Three-phase power (stand-by): 16.0kVA – 400V
Three-phase power (prime): 14.4kVA – 400V
Single-phase power (max.): 10.0kVA – 230V
Single-phase power (max.): 5.0kVA – 110V
Power factor: cos w 0.8
Diesel Engine – 1500 rpm Type: Perkins 404-22G – 4 cylinder – 2216 cm3
Max power: 27.2 HP (20.3kWm)
Starting system: Electric (12V DC)
Cooling system: Water
Fuel tank capacity: 56 litres
Fuel consumption @ 75%: 4.0 l/h
Insulation Class H
Ambient temperature 40°C
Altitude 1000m
Mechanical Protection IP23
Dimensions (L x W x H) 1828 x 683 x 1230mm
Dry weight 730 kg
