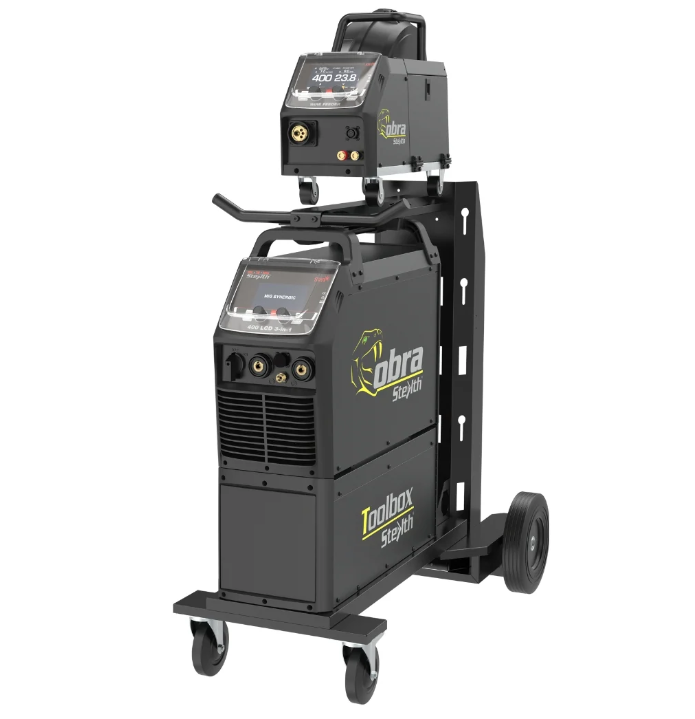

Cobra by Stealth 400 LCD 3-In-1 Multi-process Air Cooled Welding Machine

  • 5 Year Manufacturer Warranty

£2,550.00

Including 20% VAT

- +
Categories: ,

The Cobra by Stealth MIG 400 LCD 3-in-1 Multi-Process Air Cooled Welding Machine (9196H-AC) is a versatile and reliable MIG, TIG (DC), and MMA welding system built for fabrication, production, and workshop environments. Featuring advanced MCU control, synergic MIG performance, and an easy-to-use LCD interface, it combines power and flexibility in one machine.

  • 3-in-1 welding: MIG, Lift TIG (DC), and MMA
  • Air cooled design for dependable workshop operation
  • MCU control with IGBT module and synergic MIG
  • Generator friendly with phase loss protection
  • Heavy-duty 60% duty cycle at 400A

Brand

Swp

Specifications

  • Power Supply Voltage (V): 3-400
  • Power Frequency (Hz): 50/60
  • Effective Current (A): MIG 20.9 | TIG 17.1 | MMA 22.2
  • Rated Input Current (A): MIG 27.0 | TIG 22.1 | MMA 28.7
  • Rated Input Power (KW): MIG 21.4 | TIG 16.0 | MMA 17.6
  • Duty Cycle (40°C 10 min) (A): 60% @400 | 100% @ 310 (MIG, TIG, MMA)
  • Welding Current Range (A): MIG 30-400 | TIG 10-400 | MMA 10-400
  • Welding Voltage Range (V): MIG 15.5-34 | TIG 10.4 | MMA 20.4-36
  • Wire Feeding Speed (m/min): MIG 1.5-18
  • No Load Voltage (V): 76
  • Efficiency (%): 90.8
  • Power Factor: 0.9
  • Insulation Class: F
  • Protection Class: IP21S
  • Cooling: AC
  • Net Weight (kg): 29.4
  • Dimensions (mm): 710 x 270 x 490

The Cobra by Stealth MIG 400 LCD 3-in-1 Multi-Process Air Cooled Welding Machine (9196H-AC) is a versatile and reliable MIG, TIG (DC), and MMA welding system built for fabrication, production, and workshop environments. Featuring advanced MCU control, synergic MIG performance, and an easy-to-use LCD interface, it combines power and flexibility in one machine.

  • 3-in-1 welding: MIG, Lift TIG (DC), and MMA
  • Air cooled design for dependable workshop operation
  • MCU control with IGBT module and synergic MIG
  • Generator friendly with phase loss protection
  • Heavy-duty 60% duty cycle at 400A

Brand

Swp

Specifications

  • Power Supply Voltage (V): 3-400
  • Power Frequency (Hz): 50/60
  • Effective Current (A): MIG 20.9 | TIG 17.1 | MMA 22.2
  • Rated Input Current (A): MIG 27.0 | TIG 22.1 | MMA 28.7
  • Rated Input Power (KW): MIG 21.4 | TIG 16.0 | MMA 17.6
  • Duty Cycle (40°C 10 min) (A): 60% @400 | 100% @ 310 (MIG, TIG, MMA)
  • Welding Current Range (A): MIG 30-400 | TIG 10-400 | MMA 10-400
  • Welding Voltage Range (V): MIG 15.5-34 | TIG 10.4 | MMA 20.4-36
  • Wire Feeding Speed (m/min): MIG 1.5-18
  • No Load Voltage (V): 76
  • Efficiency (%): 90.8
  • Power Factor: 0.9
  • Insulation Class: F
  • Protection Class: IP21S
  • Cooling: AC
  • Net Weight (kg): 29.4
  • Dimensions (mm): 710 x 270 x 490
